Why my WLAN Pi is still one of my most valuable Wi-Fi tools

The WLAN Pi started as a simple, portable Wi-Fi diagnostics platform.
Over the years, it became a repeatable, neutral reference point for troubleshooting Wi-Fi performance.

Especially when the discussion turns into:“The Wi-Fi is slow”

Speedtest vs iPerf: Why we test this way

Modern WLAN Pi versions include Speedtest, and that’s great for user experience checks.
But Speedtest answers only one question:

“How fast does this feel right now?”

It does not answer:

• Where congestion starts
• Whether airtime is sufficient
• If QoS is actually working
• When jitter becomes unacceptable

That’s where iPerf3 comes in.

Airtime capacity testing with iPerf3 (UDP)

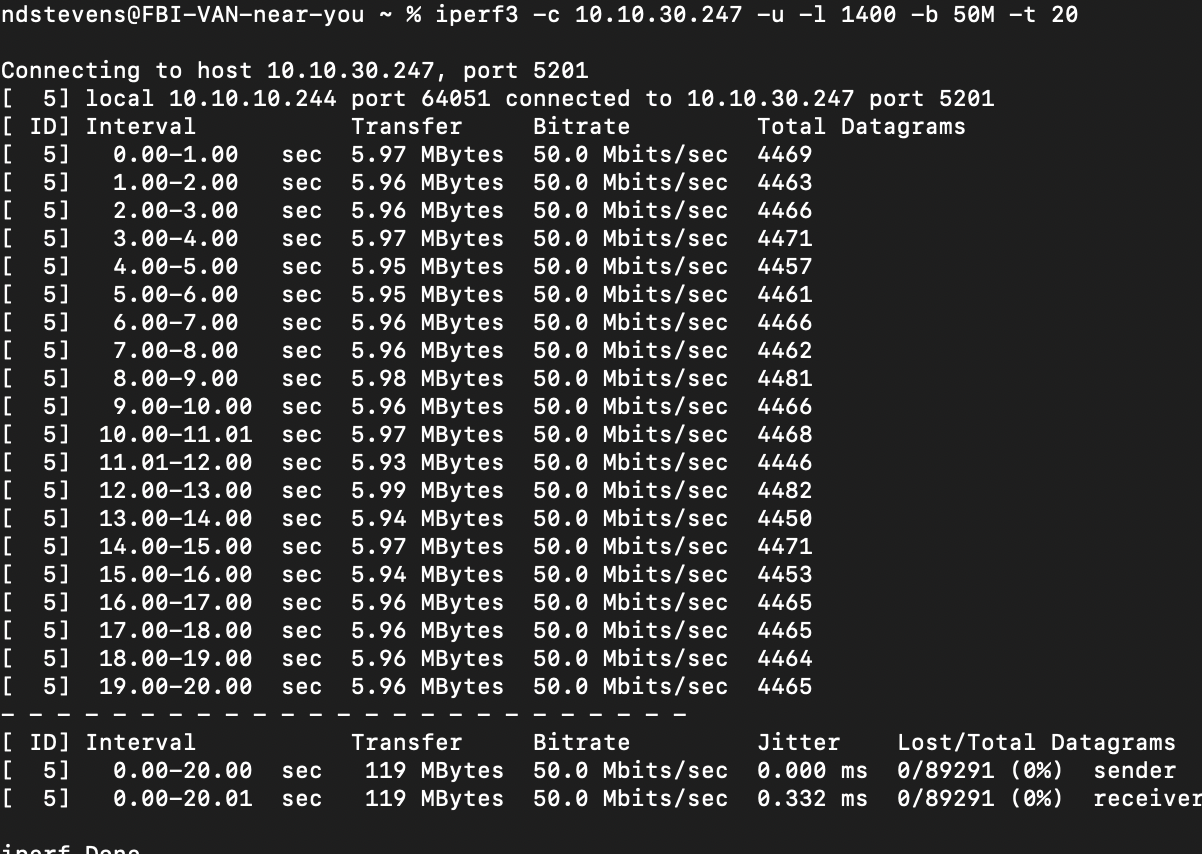

iperf3 -c 10.10.30.247 -u -l 1400 -b 50M -t 20

What this test does

This is a UDP offered-load test, not a speed test and it answers one very specific question:
“Can the Wi-Fi path sustain 50 Mbps without congestion”?

Parameters explained:

• -u (UDP)
  Exposes loss and jitter immediately (no TCP retransmissions or backoff)
• -l 1400
  Keeps packets below MTU, preventing fragmentation and RF distortion
• -b 50M
  Forces a constant 50 Mbps load — stress, not peak speed
• -t 20
  Long enough to expose instability, not just bursts

What we evaluate with this test:

Airtime capacity
Can the Wi-Fi cell sustain the offered load without congestion?

Stability under load
Do we see:

• micro-drops
• retries
• traffic bursts

QoS / WMM behavior (indirect)

UDP reacts immediately to congestion — no TCP backoff to hide problems.

Latency-sensitive behavior

Jitter increases instantly when:

• RF quality degrades
• airtime contention starts

How we interpret the results

Key thresholds

• Packet loss < 1%  acceptable for video
• Packet loss > 1–2% audible / visible degradation
• Jitter > 30 ms  real-time communication issues
• Achieved bitrate < offered bitrate  insufficient airtime

What this test proves

• The Wi-Fi cell can sustain 50 Mbps UDP
• No congestion at this load level
• Excellent latency stability (sub-millisecond jitter)
• Correct packet sizing (no fragmentation effects)

When to force TCP window sizing

Often performance issues are not RF-related.

Typical symptoms

• Low throughput on Wi-Fi
• Good RSSI and SNR
• No obvious RF problems

Test approach

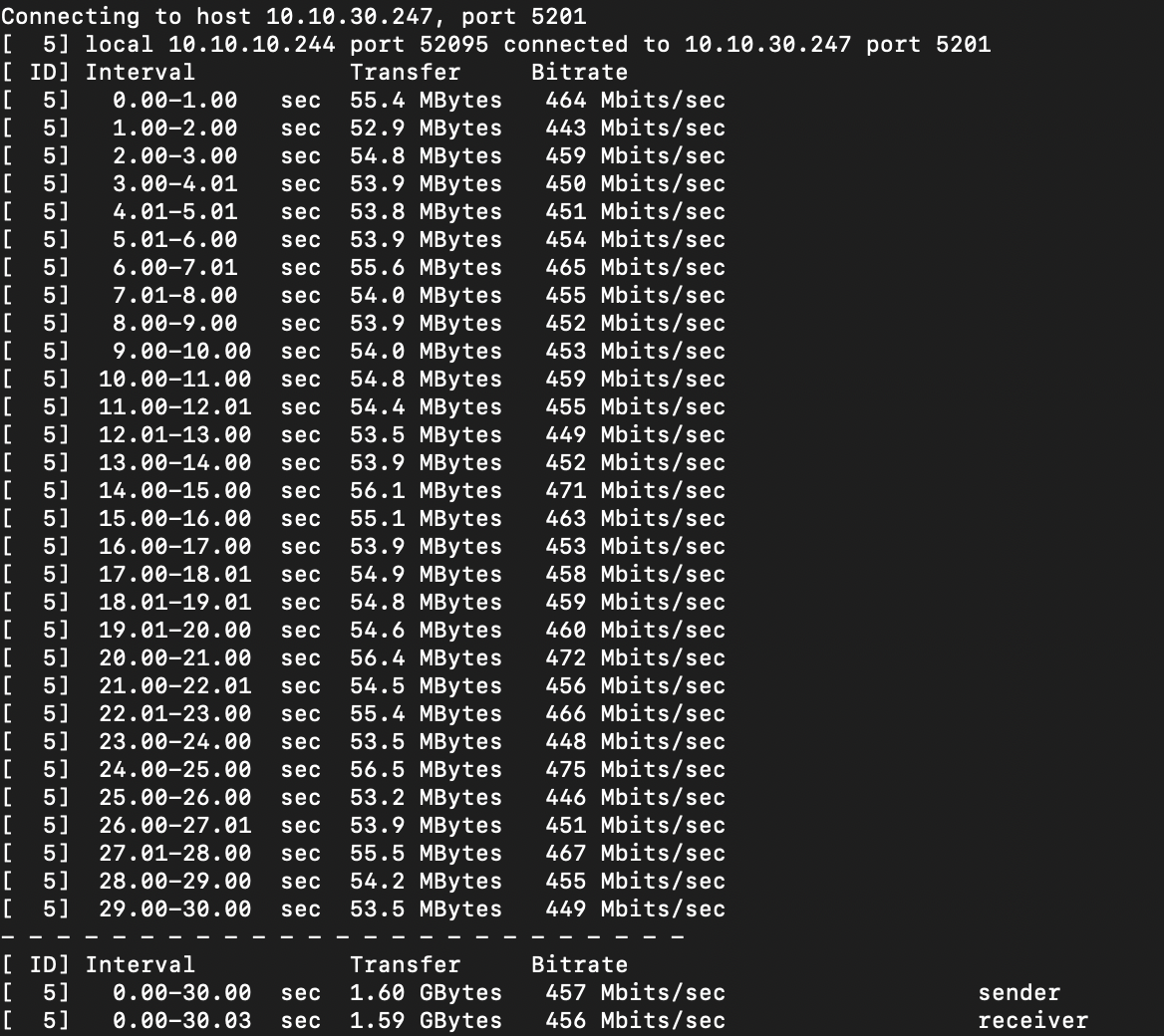

iperf3 -c 10.10.30.247 -t 30 -i 1

Then compare against forced window sizes:

iperf3 -c 10.10.30.247 -w 64K -t 30

iperf3 -c 10.10.30.247 -w 128K -t 30

If performance barely changes:

• The bottleneck is not TCP
• Look at airtime, loss, or latency

Small window sizes are also useful to simulate WAN conditions:

• Wi-Fi → VPN → Datacenter
• Teams / RDP / VDI
• Long RTT paths

MTU testing with iPerf3

While iPerf does not test MTU directly, it can expose fragmentation behavior.

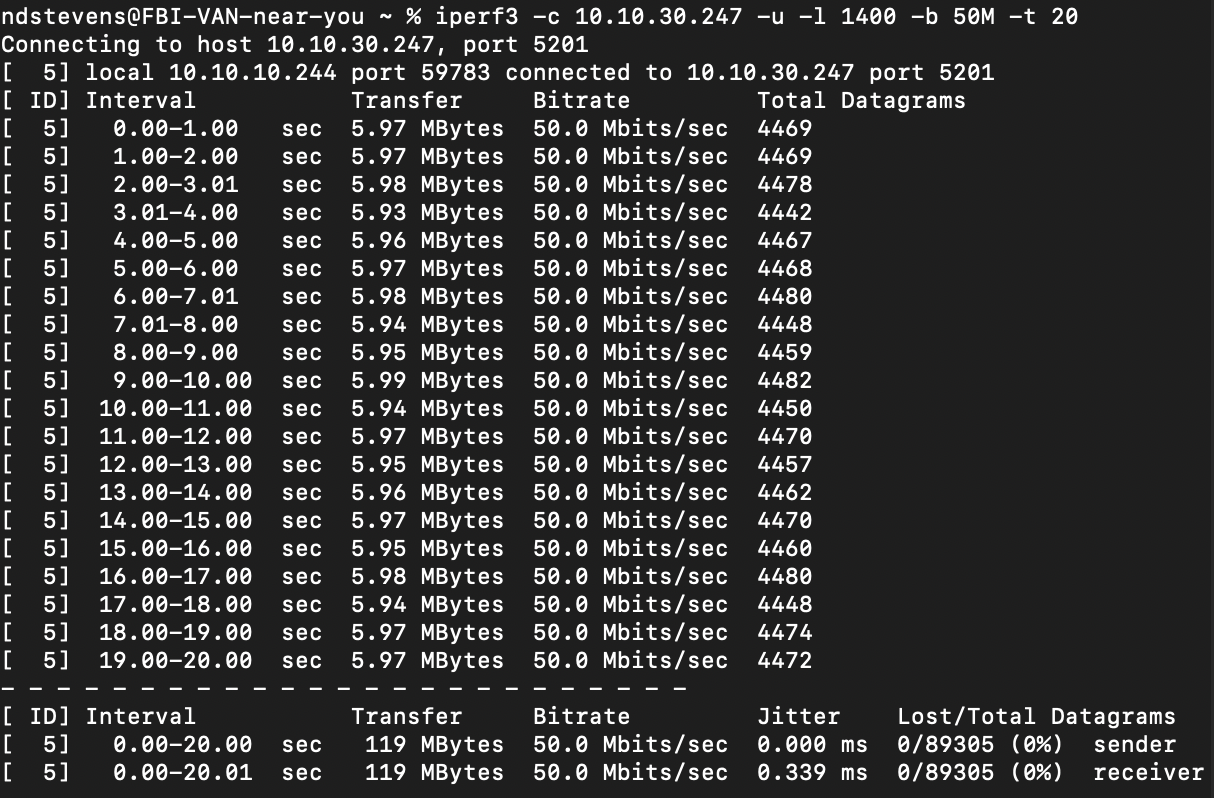

iperf3 -c 10.10.30.247 -u -l 1400 -b 50M -t 20

iperf3 -c 10.10.30.247 -u -l 1600 -b 50M -t 20

With 1600 MTU (force fragmentation) Fragmentation typically results in:

• Increased jitter

• Higher loss

• Reduced effective throughput

Why the WLAN Pi still matters

• AP-on-a-Stick surveys

• Troubleshooting asymmetric paths

• Repeatable, vendor-neutral testing

Small device. Big truths about Wi-Fi
